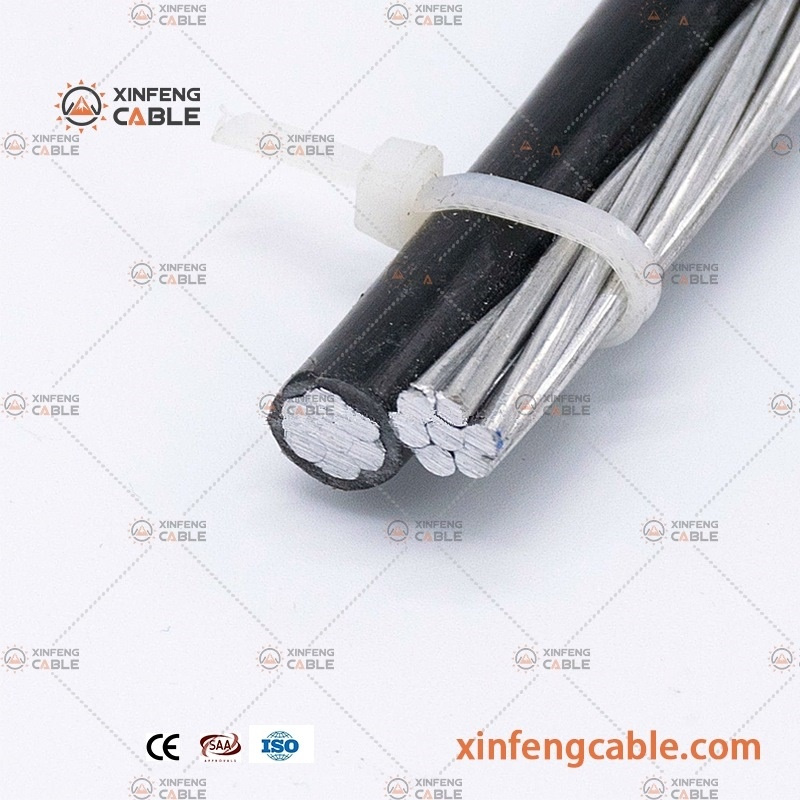

Low Voltage 4 Core ABC Cable Quadruplex Aluminum Overhead Cable

Low Voltage 4 Core ABC Cable Quadruplex Aluminum Overhead Cable image

Get Latest Price Request a quote

Product Details

N° de Modèle.

ABC

Courant

CC et CA

Matériau isolant

XLPE

Forme Matériel

Fil rond

Fil Matériau du noyau

aluminium

Certificat

ISO, CCC, CE

Modèle

abc

Marque

xinfeng

utilisation

transmission de puissance

nombre de noyaux

1, 2, 3, 4, 5

identification des couleurs

numéro

tension nominale

1 kv

type d′isolation

pvc/pe/xlpe

rayon de courbure minimum

12 x od

conducteurs

aluminium

Paquet de Transport

tambour en bois à cadre en acier

Spécifications

fait sur commande

Marque Déposée

xinfeng

Origine

Chine

Code SH

854449

Capacité de Production

4500tonne/mois

Product Description

1. Main Application
Low voltage aerial cable is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It includes aerial bundle cable (ABC cable), covered line wire and service drop cable. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
Low voltage aerial cable is designed to supply 600/1000-volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. This over-head cable provides reinforced insulation acc.

2. Standards
IEC60502-1, NFC 33-209, BS 7870, HD 626 S1, ANSI/ICEA S-76-474, ICEA S61-402 and ICEA S-66-524, AS/NZS 3560.1, GB/T12527, GB/T1179
* Xinfeng Cable can also design and produce for special application requirement.

3. Characteristics
Voltage rating: 1kV
Test voltage: 4kV, 5min no breakdown.
Operating temperature:
PVC: -15°C to +70°C
PE: -40°C to +70°C
XLPE : -40°C to +90°C
Minimum laying/ installation temperature:
PVC: 0°C PE: -20°C XLPE: -20°C
Minimum bending radius:
12 x OD (overall diameter)

4. Construction:
Conductors: CU/AAC/AAAC/ACSR.
Insulation: PE/XLPE/PVC, UV-resistant.
Core identification: numbers or ribs or colors stripe.

5. ABC Cable Standard Specification Reference(More Specification Please Contact Our Sales Team)

Aerial Bundle Cable, AL Conductor XLPE Insulation Cable IEC 60502-1

1: Phase conductors: AAC
2: Insulation: XLPE, UV-resistant.
3: Neutral-supported:AAC
4: Core identification: Ribs or numbers or colors stripe.

Voltage rating: 0.6/1kV
Test voltage: 3.5kV, 5min no breakdown.
Operating temperature:-40°C to +90°C
Minimum laying/installation temperature:-20°C
Minimum bending radius:12 x OD (overall diameter)

Number Of Cores x Nominal Cross Section No.×mm²	Approx. Overall Diameter mm	Approx. Weight kg/km	Max. DC Conductor Resistance At 20ºC Ω/km	Minimum Breaking Load kN	Current Rating A
3×16+1×25 RM	19.0	290	1,91	4,0	107
3×25+1×25 RM	23.2	400	1,200	5,5	132
3×35+1×25 RM	25.6	500	0,868	8,0	165
3×50+1×35 RM	30.0	680	0,641	10,7	205
3×70+1×50 RM	34.9	920	0,443	13,7	240
3×95+1×70 RM	40.6	1270	0,320	18,6	290
3×120+1×70 RM	44.1	1510	0,253	23,2	334
3×150+1×95 RM	49.2	1870	0,206	28,7	389
3×185+1×120 RM	54.9	2340	0,164	37,2	467
3×25+1×25+1×16 RM	23.2	470	1,200	2,5	72
3×35+1×25+1×16 RM	25.6	560	0,868	4,0	107
3×50+1×35+1×16 RM	30.0	740	0,641	5,5	132
3×70+1×50+1×16 RM	34.9	980	0,443	8,0	165
3×95+1×70+1×16 RM	40.6	1330	0,320	10,7	205
3×120+1×70+1×16 RM	44.1	1580	0,253	13,7	240
3×150+1×95+1×16 RM	49.2	1940	0,206	23,2	334
3×185+1×120+1×16 RM	54.9	2410	0,164	2,5	72

Other cross-sections can be offered upon request. RM: round stranded compressed

Aerial Bundle Cable, AL conductor XLPE insulation Cable NFC 33-209

1: Phase conductors: AAC
2: Insulation: XLPE, UV-resistant.
3: Neutral-supported: AAAC
4: Street lighting conductor: AAC
5: Core identification: Ribs or numbers or colors stripe.

Voltage rating: 0.6/1kV
Test voltage: 4kV, 5min no breakdown.
Operating temperature:-40°C to +90°C
Minimum laying/installation temperature:-20°C
Minimum bending radius:12 x OD (overall diameter)

Number Of Cores x Nominal Cross Section No.× mm²	Approx. Overall Diameter mm	Approx. Weight kg/km	Max. DC Conductor Resistance At 20ºC Ω/km	Minimum Breaking Load kN	Current Rating A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.91/12.1	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.91/12.1	2.3	72
2×25 RM	18.0	202	1.20	3.8	107
2×25 RM + 2×1.5 RE	18.0	249	1.20/12.1	3.8	107
4×25 RM	21.7	404	1.20	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.20/12.1	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.1	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.1	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.1	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.20	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.20	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.20	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33.0	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37.0	1014	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37.0	1048	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.91	13.5/2.3	240/72

Packaging Mode 1:Wooden Tray Packing,suitable for small cross section cable.Packing length about 2500 meters.
Packaging Mode 2:Wooden Drum Packing,suitable for small cross section cable.Packing length about 2500 meters.
Packaging Mode 3:Steel Frame Wooden Drum Packing,suitable for big cross section cable.Packing length about 5000 meters.

Xinfeng Cable Co., Ltd. is a research and development, production, sales in one of the well-known wire and cable enterprises, with a complete and scientific quality management system, advanced technical team support, strong sales and after-sales service.
Henan Xinfeng Cable Co., LTD., founded in 1996, with a registered capital of 210 million CNY, covers a total area of 50,000 square meters, the existing staff of 586 people, including a variety of technical personnel more than 80 people, with a university degree 60 people, the company has the current domestic advanced production equipment and testing equipment, including more than 200 sets of advanced cable production equipment. And spend tens of millions to purchase the most complete cable testing equipment.
  In 2012, the company took the lead in the cable industry through the ISO9001 international quality system certification, ISO14001 occupational safety and health certification system, 18001 environmental management certification, national CCC compulsory certification and other qualifications, and through the European safety product CE certification, European environmental protection ROSH certification, SGS environmental protection product testing certification. In 20 years of development, it has formed an annual production capacity of 1.5 billion CNY for overhead insulated wires, high and low voltage cables, BV cables and other products, and constantly improve and expand the research and development and production field of cable products.
  At present, the company is mainly engaged in the system design, development, manufacturing, marketing and service of more than 1000 kinds of cables in four categories: overhead wire, power cable, electrical equipment wire and cable, and special cable. Products are widely used in power, water conservancy, railway, transportation, new energy, petroleum and petrochemical, national defense, construction and urban infrastructure and other fields.
  The company is headquartered in Zhengzhou, and has set up 8 branches in Beijing, Wuhan, Xi ‘an, Hefei, etc., responsible for the sales and after-sales work in and around the region. In 2013, the group wholly established Henan JinFar East Cable Co., LTD., responsible for the international market sales and expansion business, products are exported to the Americas, Africa, Australia, Europe and other 38 countries and regions, products by foreign customers praise.
With the continuous expansion of product share, Xinfeng cable products have also been widely recognized and praised by the majority of users, The company has successively won the industry « National quality integrity enterprise », « China Famous products », « Henan famous brand products », 2013-2015 successively won the Henan Provincial Bureau of Industry and Commerce « contract-abiding and trustworthy enterprise », « quality, service, credit AAA enterprise », « National product quality supervision and sampling inspection qualified enterprise » and other honors.

1.Advanced Production Equipment:Advanced production equipment and testing equipment, including more than 200 sets of advanced cable production equipment.Medium voltage cable production equipment uses the German Sikora brand.

2.Quality Control:The factory has well-equipped quality control room,can complete the inspection of all major electrical parameters.

3.Experienced Team:Our experienced production and sales teams can respond to a wide variety of projects, quickly respond to customer needs, and are able to provide type test reports for most major products.

4.Competitive Pricing:Our pricing competitive without compromising on quality.

Q:What factors should be considered when selecting a power cable?
A:Factors include voltage rating, current carrying capacity, environmental conditions (temperature, moisture, chemicals), mechanical stresses (such as impact or vibration), installation requirements, and regulatory standards.Our sales team can assist in selecting the appropriate cable based on these factors.

Q:What types of power cables do you offer?
A:We offer a wide range of power cables including low voltage (voltages up to 1000V.), medium voltage (1000V to 35 kV.). We also provide specialty cables such as fire-resistant, armored, and flexible cables to meet various customer needs.

Q:What are the benefits of buying power cables from your company?
A:We provide high-quality cables manufactured to international standards.Our cables are durable, reliable, and designed to meet specific application requirements.We offer competitive pricing and flexible delivery options to meet project timelines.Our experienced team provides technical support and advice to ensure the right cable selection for your project.

Q:Can I request samples of your power cables before making a purchase?
A:Yes, we can provide samples of our power cables for evaluation purposes. Sample availability may vary depending on the type and specifications of the cable. Contact our sales team to request samples and discuss shipping arrangements.

Q:Do you provide documentation and support for product certifications required for government tender or public sector projects?
A:Yes, we offer documentation and support to assist with product certifications required for government or public sector projects. Our team can help navigate regulatory requirements, provide compliance documentation, and ensure that our power cables meet specific project specifications and standards.
