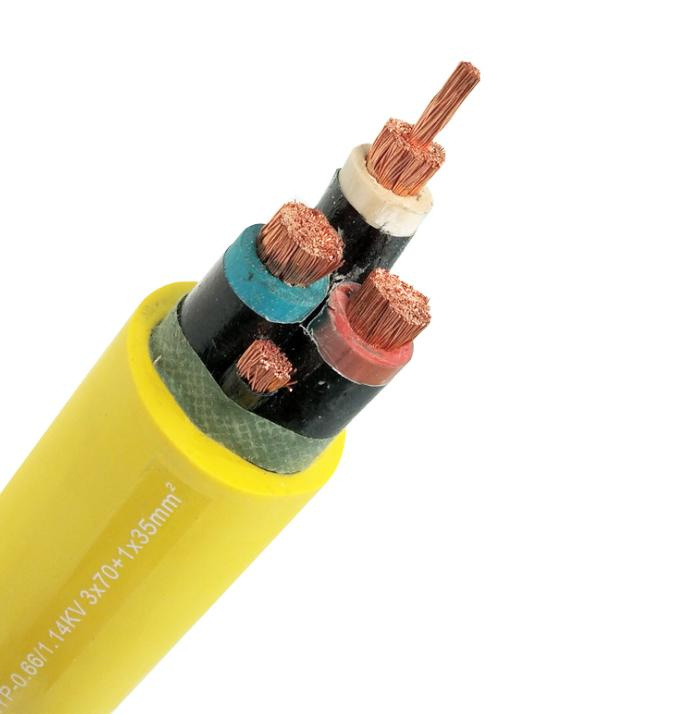

Câble de pompe submersible pour puits profonds en fil rond par mètres

Câble de pompe submersible pour puits profonds en fil rond par mètres image

Get Latest Price Request a quote

Product Details

N° de Modèle.

Submersible Cable

Courant

CC et CA

Matériau isolant

Caoutchouc

Matériau de la gaine

caoutchouc

Forme Matériel

Fil rond

Fil Matériau du noyau

Bare fil de cuivre

Certificat

jis

Modèle

Marque

huadong

tension nominale

450/750V

noyau

3 4 5 et

Paquet de Transport

par tambour en bois ou autres

Spécifications

en mètres

Marque Déposée

huadong

Origine

Chine

Code SH

8544492100

Capacité de Production

15 millions de km

Product Description

Copper Conductor EPR 3 4 5 cores Submersible Cable For Drinking Water (Round)

Applications
These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water
Dry or damp rooms, as well as outdoors and in industrial water
For connecting mobile, electrical equipment in industrial water
For use with submersible pumps
Submersion acc. AD8 standard down to 10 m depth

Construction

Conductor: Bare copper stranded class 5 to VDE0295, IEC 60228

Insulation: EPR type 3GI3

Outer Sheath: EPR type 3GM2, coloured blue,CPE or others

Technical data

Test Voltage 50Hz, 5 min: 2500V

Rated Voltage: 450/750V

Maximum admissible conductor Temperature in Operation: 90°C

Short Circuit Temperature: 250°C

Temperature Range:-40°C~+60°

NO. OF CORES X CROSS	OUTER DIAMETER		NET WEIGHT
NO. OF CORES X CROSS	MIN. VALUE MM	MAX. VALUE MM	KG/KM
3 x 1.5	9.6	12.5	150
3 x 2.5	11.5	14.5	220
3 x 4	13	16	340
3 x 6	14.5	20	480
3 x 10	20	25.5	750
3 x 16	22.5	29.5	1100
3 x 25	26.5	34	1450
3 x 35	29.5	38	2100
3 x 50	34.5	44	2800
3 x 70	39	49.5	3800
3 x 95	44	54.6	4600
3 x 120	47.5	59	5400
4G1.5	10.5	13.5	190
4G2.5	12.5	15.5	280
4G4	14.5	18	390
4G6	16.5	22	520
4G10	22.5	24.5	950
4G16	26.5	28.5	1400
4G25	32	34	1950
4G35	33	42.5	2700
4G50	38	48.5	3600
4G70	43	54.5	4900
4G95	50	60.5	6200
4G120	53	65.5	7200
5G1.5	11.5	15	230
5G2.5	13.5	17	340
5G4	16	19.5	470
5G6	18	24.5	640
5G10	24	30.5	1150
5G16	27	35.5	1700
7G1.5	16.5	17.5	370
10G1.5	18.6	19.6	460
7G2.5	18.9	19.4	510
10G2.5	21.4	21.9	650
